SEETEC ATEM173S-CO 17,3 ZOLL 1920X1080 CARRY ON BROADCAST MONITOR LUT WAVEFORM HDMI 4 SDI IN OUT
inkl. MwSt.
Versand wird beim Checkout berechnet
Wir stellen Ihnen den tragbaren Broadcast-Monitor ATEM173S-CO von SEETEC vor, eine hochmoderne Lösung, die Ihr Broadcast-Erlebnis revolutionieren wird. Dieser Hochleistungsmonitor kombiniert fortschrittliche Funktionen mit beispielloser Portabilität und ist damit der ultimative Begleiter für Profis unterwegs.
Der ATEM173S-CO verfügt über ein lebendiges 17,3-Zoll-Display mit Full-HD-Auflösung und bietet kristallklare Bilder, die Ihre Inhalte zum Leben erwecken. Dank des großen Betrachtungswinkels und der außergewöhnlichen Farbgenauigkeit können Sie darauf vertrauen, dass jedes Detail mit höchster Präzision dargestellt wird. Ganz gleich, ob Sie am Set oder vor Ort arbeiten, das kompakte und leichte Design des Monitors sorgt für einen problemlosen Transport und macht ihn zur idealen Wahl für reiseintensive Projekte.
Ausgestattet mit einer umfassenden Auswahl an Konnektivitätsoptionen, einschließlich 3G-SDI, HDMI und VGA, bietet der ATEM173S-CO eine nahtlose Integration in Ihr bestehendes Setup. Seine intuitive Benutzeroberfläche und anpassbare Einstellungen ermöglichen eine mühelose Navigation und effizientes Workflow-Management. Darüber hinaus verfügt der Monitor über erweiterte Überwachungstools wie Wellenform, Vektorskop und Fokusunterstützung, die Ihnen eine Feinabstimmung Ihrer Bilder mit unübertroffener Genauigkeit ermöglichen.
Erleben Sie die Zukunft der tragbaren Broadcast-Überwachung mit dem SEETEC ATEM173S-CO Carry-On Broadcast-Monitor. Liefern Sie außergewöhnliche Inhalte und steigern Sie die Qualität Ihrer Produktion wie nie zuvor. Mit seiner bemerkenswerten Leistung, Zuverlässigkeit und seinem kompakten Formfaktor ist dieser Monitor Ihr Tor zu nahtlosem Broadcasting, egal ob Sie im Studio oder draußen arbeiten. Investieren Sie in Innovation und erzielen Sie herausragende Ergebnisse mit dem SEETEC ATEM173S-CO Carry-On Broadcast Monitor.
TRUSTED SEETEC QUALITY
The SEETEC ATEM 173S-CO Carry-on Broadcast Monitor is a complete monitoring solution for live production, broadcast and post-production. It comes equipped with 4x3G-SDI inputs and outputs, 1 x HDMI input interface and RS485, GPI control interface. The SEETEC ATEM 173S-CO Carry-on Broadcast Monitor is factory calibrated to the Rec.709 colour standard, ensuring it can display vivid images and professional effects with excellent accuracy. The excellent 17.3” panel is housed in rugged and durable aircraft-grade aluminium.

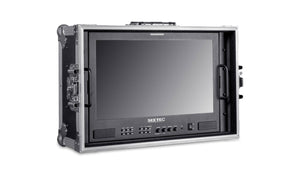

RUGGED AIRCRAFT-GRADE ALUMINIUM CASE
This SEETEC ATEM173S-CO Carry-on Broadcast Monitor comes equipped with a rugged aircraft-grade aluminium case, so it can be quickly packed down and set up while also protecting the monitor, meaning it can be used in harsh filming conditions on set or in the field.
PROFESSIONAL MONITORING FUNCTIONS
The SEETEC ATEM156-CO Broadcast Monitor includes a suite of professional monitoring functions which correlate with the actual needs of pre- and post-production. It features focus-checking functions such as Peaking Focus, False Colour, and Pixel to Pixel scaling, to help you get the best shots with sharp images. It is equipped with an intuitive control panel, with shortcut keys with functions you can customise and quickly activate as needed. To power the SEETEC ATEM156-CO Broadcast Monitor, you can use the 12V DC power input or the V- mount battery plate on the rear of the device.

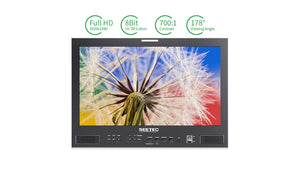

BEAUTIFUL 17.3-INCH FULL HD IPS SCREEN FROM SEETEC
The SEETEC ATEM 173S-CO Carry-on Broadcast Monitor utilises a 17.3-inch IPS panel, with a high resolution of Full HD 1920x1080, which features excellent colour accuracy, providing you with a natural and clear image. Alongside this, the SEETEC ATEM 173S-CO Carry-on Broadcast Monitor features 300cd/㎡ peak brightness with a 700:1 contrast ratio and 178° viewing angles. This allows you to see your footage clearly, no matter which angle you monitor from.
RUGGED AND DURABLE, EXCELLENT HEAT DISSIPATION
The full aluminium alloy frame of the SEETEC ATEM 173S-CO Carry-on Broadcast Monitor not only makes the device more durable but also solves the problem of heat dissipation, as well as improving build quality.

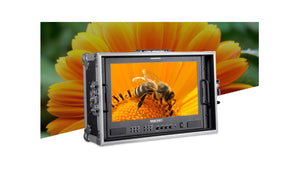

ACCURATE COLOUR REPRODUCTION USING REC.709 COLOUR STANDARD
Discover the SEETEC ATEM173S-CO Broadcast Studio Monitor, meticulously factory-calibrated to meet the exacting standards of the professional Rec.709 HD colour spectrum. This expert calibration ensures seamless efficiency in achieving monitor calibration, effortlessly delivering precise and true-to-life colour reproduction without any distortions. Trust in this monitor's ability to faithfully portray the real image as you shoot videos, guaranteeing an unparalleled viewing experience that accurately reflects the original content with unwavering accuracy.

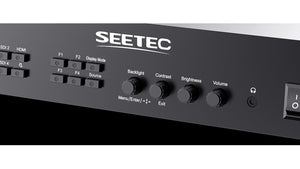

FLEXIBLE AND INTUITIVE BUTTON OPERATION WITH THIS SEETEC MONITOR
When you are busy shooting a scene, you need to be able to easily control your equipment. The SEETEC ATEM 173S-CO Carry-on Broadcast Monitor can switch between one-button sources and custom shortcuts, while allowing you to quickly adjust brightness, contrast, volume, etc. to make shooting easier and more efficient. The backlight button makes it easier for you to distinguish the current input signal and the shortcut keys used, making this SEETEC monitor easy to use in both dimly lit studios and outdoor environments.

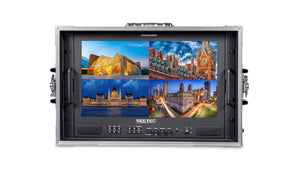

4X3G-SDI INPUTS AND OUTPUT FOR PROFESSIONAL APPLICATIONS
SEETEC ATEM173S-CO Carry-on monitors are the perfect choice to use SDI monitoring wherever you need it. The SEETEC ATEM 173S-CO Carry-on Broadcast Monitor comes equipped with 4x3G-SDI signal inputs and outputs, making it suitable for multicamera shooting and simultaneous monitoring by multiple people. In addition, it also comes with an HDMI input, RS485, and GPI control interface to meet your different needs.

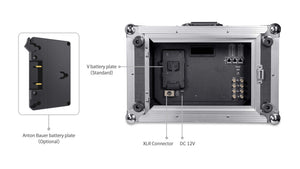

MULTIPLE POWER OPTIONS FOR ENDURANCE SHOOTING
The SEETEC ATEM 173S-CO Carry-on Broadcast Monitor can be used with both a 12V DC power interface, XLR connector or Sony V-mount battery plate for optimal practicality and flexibility.
(Please note: The battery plate default is V-mount Plate, the client can also choose to use a Panasonic Anton Plate)
PROFESSIONAL SEETEC TOOLS BUILT IN
The professional SEETEC tools built into the SEETEC ATEM 173S-CO Carry-on Broadcast Monitor are designed to improve the efficiency of your projects. This broadcast monitor includes a suite of professional monitoring tools, such as waveform, 3D-LUT, peaking filter, histogram, vectorscope, audio meter, time code, and anamorphic mode. All functions can be easily selected and operated from the menu, and can also be set to shortcut buttons on the front of the device or via GPI control. The SEETEC ATEM 173S-CO Carry-on Broadcast Monitor effectively improves the efficiency of on-site shooting and post-production.
SUPPORTS UP TO 36 CUSTOM LUTS
3D-LUTs (Look Up Tables) are used for quickly looking up and outputting specific colour data. By loading different 3D-LUTs, the SEETEC ATEM 173S-CO Carry-on Broadcast Monitor can quickly recombine colour tones to form different colour styles. This SEETEC monitor features 4 DE-log LUTs built in, and you also can load up to 36 of your custom .cube files to the monitor via USB.
HDR MONITORING - WHAT YOU SEE IS WHAT YOU GET
The SEETEC ATEM 173S-CO Carry-on Broadcast Monitor supports HDR (high dynamic range) monitoring for incredible clarity and details, effectively enhancing the overall picture quality. When HDR is enabled, you can select Gamma and Gamut corresponding to the manufacturer of your camera (Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI) to accurately monitor HDR content.

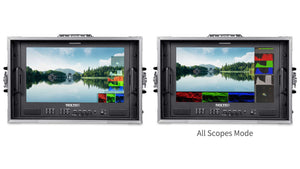

ACCURATE WAVEFORM MONITORING
The SEETEC ATEM 173S-CO Carry-on Broadcast Monitor features built-in waveform monitoring. Users can choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know about your video and audio signals. These functions can be opened separately, all controllable via one convenient key (can be adjusted right and left). The SEETEC ATEM 173S-CO Carry-on Broadcast Monitor is the ideal choice for live production monitoring and eliminates the need for separate scopes.

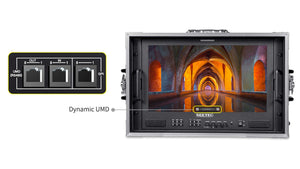

DYNAMIC UMD TSL3.1/4.0 PROTOCOL
The SEETEC ATEM 173S-CO Carry-on Broadcast Monitor supports UMD via the TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. There are UMD inputs and outputs via RS485 ports.
Seetec ATEM173S-CO broadcast monitor Technical Specifications
Display Spec.
Model ATEM173S-CO
Screen Size 17.3" IPS
Color Depth 16.7M
Resolution 1920×1080 pixels
Pixel pitch 0.1989(W) x 0.1989(H) mm
Aspect Ratio 16:9
Brightness 300cd/m²
Contrast Ratio 700:1
Backlight LED
Viewing Angle 89°/89°(L/R) 89°/89°(U/D)
Input
4 X 3G-SDI 3G-SDI (support 2K)
1 X HDMI HDMI (support 1080P)
1 X RS485 RS485
1 X GPI GPI
1 X USB USB (upgrade and LUT import)
Output
4 X 3G-SDI 3G-SDI (support 2K)
1 X RS485 RS485
Audio
Audio Stereo Headphone, Speaker

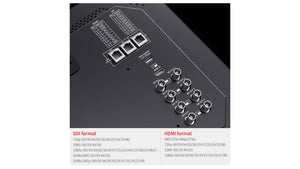

SDI Support Format
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
2048x1080i (60/59.94/50)
2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI Support Format
480i/576i/480p/576p
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
General
Input Voltage DC 12V
Power Consumption ≤22W
Working Temperature 0°C~50°C
Storage Temperature -20°C~60°C
Unit Size 425L×296H×23D (mm) (W/O aluminium case)
Unit Weight 2.84kg (w/o aluminium case)
Outer Carton Qty 1
Outer Carton Size 590*300*400 (mm)
Gross Weight 12.7kgs
Advanced Features
* Built-in Multi camera Delog LUTs
* User 3DLUTs upload via USB (up to 36)
* Support GPI control
* Support dynamic IMD, support TSL 3.1/4.0 and IMAGE VIDEO protocol
* Support TALLY
* Support 16-ch embedded audio meters display
* Histogram
* HDR
* Focus Assist (Yellow, Red, Green, Blue and White five colors optional highlight over parts of the image in focus)
* False Colors
* Zebra (70IRE, 80IRE, 90IRE)
* Timecode Display
* Picture in Picture (Adjustable Horizontal or Vertical Wipe Position)
* Under Scan, Over Scan
* Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
* Pixel to Pixel
* Center Marker
* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
* Marker Mat (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
* All Waves
* Parade (RGB Parade, Y, YUV Parade)
* Image Freeze
* Selectable Color Temperature Presets
