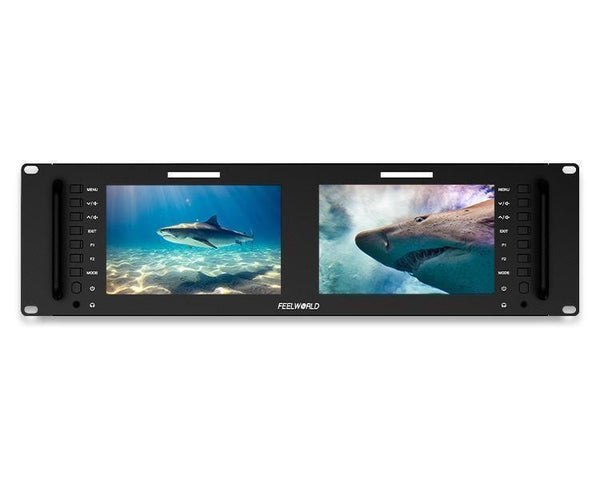

FEELWORLD D71 PLUS-H DUAL 7" 3RU RACK MOUNT MONITOR 4K HDMI 1920X1200 IPS
Tax included
Shipping calculated at checkout
Introducing the Feelworld D71 Plus-H Dual Rack Mount Monitor, a revolutionary solution meticulously crafted to enhance your professional video production experience. This advanced monitor effortlessly allows filmmakers to assess images directly from the 1:1 signal source, eliminating any undesired scaling. Its extraordinary feature guarantees the utmost precision and clarity, enabling unmatched detail capture. With its sleek and robust design, the Feelworld D71 Plus-H Dual Rack Mount Monitor is an essential tool for discerning professionals in search of dependable and exceptional visual monitoring capabilities.
Immerse yourself in a world of unparalleled image quality and performance with this state-of-the-art rack mount monitor. Designed to elevate your production game, the Feelworld D71 Plus-H Dual Rack Mount Monitor offers remarkable features tailored to meet the demands of the most discerning videographers. Its cutting-edge technology ensures effortless assessment of images, providing filmmakers with a direct and unadulterated view of their 1:1 signal source. Say goodbye to unwanted scaling and hello to pristine visual accuracy.
Crafted with both style and durability in mind, the Feelworld D71 Plus-H Dual Rack Mount Monitor guarantees a sleek and sturdy design that can withstand the rigors of professional use. Whether you're working in a studio environment or on location, this monitor is the ultimate companion, offering reliable and top-notch visual monitoring capabilities. Elevate your professional video production experience and embrace the world of exceptional image quality and performance with the Feelworld D71 Plus-H Dual Rack Mount Monitor.

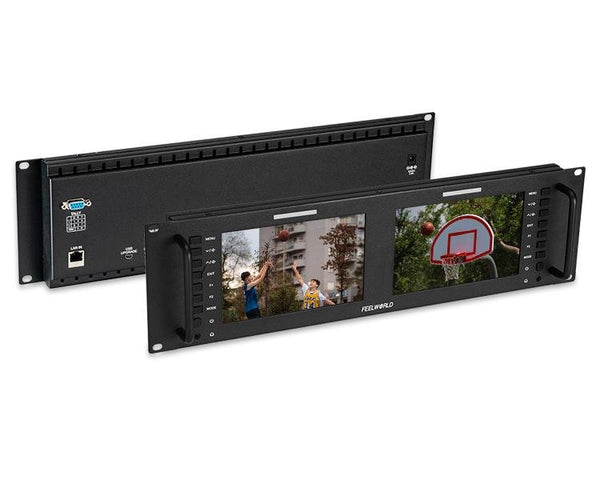

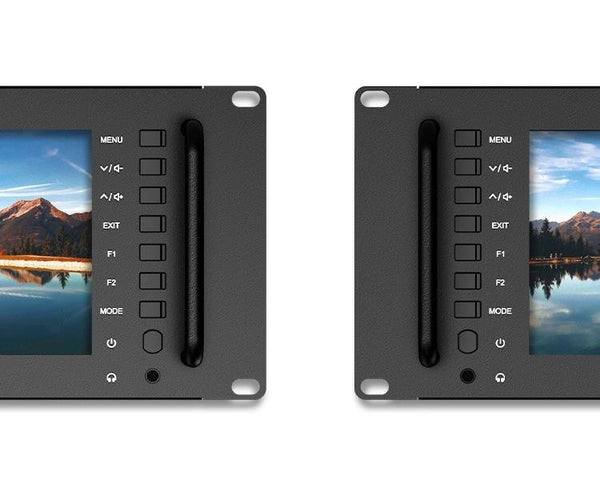

DUAL, EASY TO INSTALL MONITORS

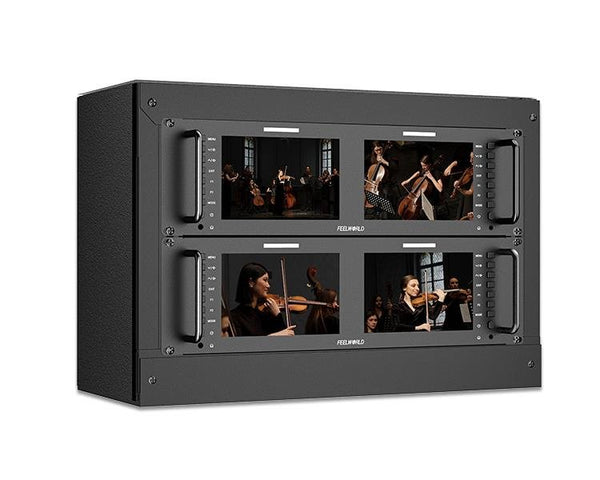

The Feelworld D71 PLUS-H Dual Rack Mount Monitors are designed to be extremely thin and lightweight. The D71 PLUS-H’s two 7” IPS 1920x1200 screens work excellently for viewing SD and HD video on any 3RU rack. The unit also features GPIO for Software control via Ethernet connection so it can be controlled remotely. The Feelworld D71 PLUS-H Dual Rack Mount Monitors are widely used in all levels of TV news production, post-production, programme broadcasting and in TV broadcasting trucks, video surveillance and other fields. Since this series is designed to work alongside other professional equipment, high stability, reliability and electromagnetic compatibility are important priorities in the design that ensure the whole system runs smoothly.
Enjoy Consistent Images from Any Perspective
The Feelworld range of camera monitors has been designed to be as consistent as possible. This allows users of one product to be able to intuitively and quickly learn how to use the rest of the range with minimal effort, which improves production efficiency.
Intuitive, Consistent and easy to learn
The Feelworld range of camera monitors has been designed to be as consistent as possible. This allows users of one product to be able to intuitively and quickly learn how to use the rest of the range with minimal effort, which improves production efficiency.
VERSATILE INPUT METHODS

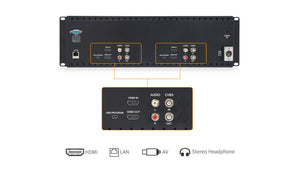

Each monitor of the D71 Plus H supports multiple inputs and outputs, including HDMI and more, ensuring you can view footage from a wide range of sources. Each monitor also features its own dedicated audio interface so you can monitor your footage with confidence.
Network Control

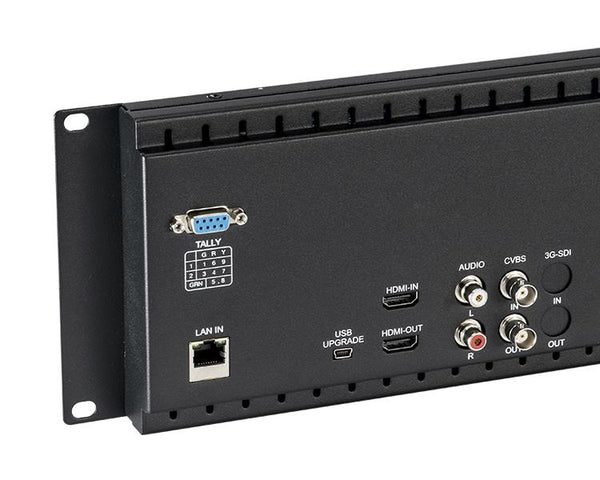

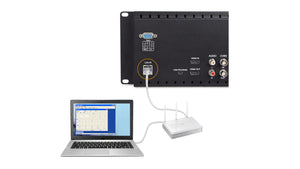

The Feelworld D71 PLUS-H Dual Rack Mount Monitors include a LAN port, which allows the operator to the unit via software over ethernet (software included). The LAN 100 port on the rear panel connects the unit to the network. Once connected, the user simply locates the IP address of any one of the units connected to this network. This is accomplished by going to the MAIN MENU of any of the connected units and selecting the NETWORK CONFIGURATION submenu. This will then display the IP address of that unit. Simply type this IP address into the address bar of your Software. It is possible to poll your LAN for all other units connected by accessing the NETWORK tab from the Top Menu. The user can then control multiple networked D71 PLUS-H monitors at once using a single piece of software. The user may select which monitor(s) they wish to control and send commands to them over the network. The browser provides the real-time status of any connected monitors, which ensures consistent signals/feeds.
INTEGRATED VECTORSCOPES AND HISTOGRAMS
Each monitor of the Feelworld D71 PLUS-H has been improved to include professional monitoring functionality such as vectorscopes and histograms. Professionals can use these features to analyse their feeds with more detail than ever before.
Incredible Stability and Reliability
As rack mount monitors need to be designed for continuous operation, all components of the Feelworld D71-H Dual Rack Mount Monitors must be made in accordance with industrial quality standards. The Full Metal case of the D71-H not only makes the product more robust and durable but also improves thermal efficiency.
FEELWORLD D71 PLUS-H Dual Rack Mount Monitor - TECHNICAL SPECIFICATIONS
Model D71 PLUS-H
Screen Size 7"×2 IPS
Resolution 1920×1200 pixels
Dot pitch 0.07875(H)×0.07875 (W) mm
Aspect Ratio 16:10
Brightness 450cd/m²
Contrast Ratio 1100:1
Backlight LED
Viewing Angle 80°/80°(L/R) 80°/80°(U/D)
Input (Each LCD)
1 X HDMI HDMI
1 X BNC Video
2 X RCA Audio(L/R)
Output (Each LCD)
1 X HDMI HDMI
1 X BNC Video
Audio (Each LCD)
Audio Out Stereo Headphone × 1
HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz)
DCI 4K 4096×2160p (24Hz)
CVBS (Video) Support Format
PAL/NTSC auto recognize
General
Input Voltage DC9～24V
Power Consumption ≤21W

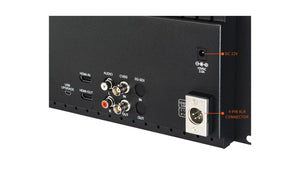

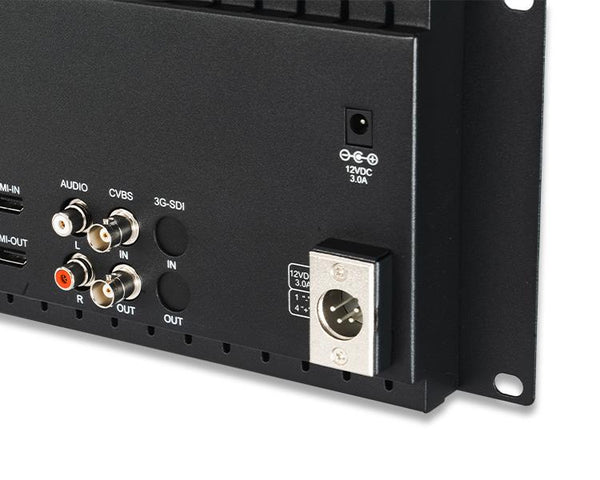

Power Connector DC/ 4-pin XLR
Working Temperature -10°C~60°C
Storage Temperature -30°C~70°C
Install Way Rack Mount
Unit Size 482.6Lx132Hx30.5D mm
Unit Weight 1890g
Outer Carton Qty 5
Outer Carton Size 480*274*500 (mm)
Gross Weight 14.5kgs
Advanced Features
* Waveform (RGB、YUV、Y)
* Vectorscope
* Histogram (RGB1、RGB2、Y)
* Custom LUTs (up to 32)
* Focus Assist(Red, Green, Blue)
* Check Field (Red,Green,Blue,Mono)
* Embedded Audio
* Over Exposure
* Pixel to Pixel
* Center Marker (Red, Green, Blue, Black, White, Gray)
* Ratio Marker (4:3、13:9、14:9、15:9、16:9、1.85:1、2.35:1)
* Image Flip (H, V, H/V)
* Image Freeze
* Zoom Mode (2X、4X、9X、16X、User)
* False Color
* Scan Mode(Under Scan, Over Scan)
* Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
* Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
* Custom Color Temperature
* Built-in LED tally indicators (Red, Green, Yellow)
